Cellyx Louver

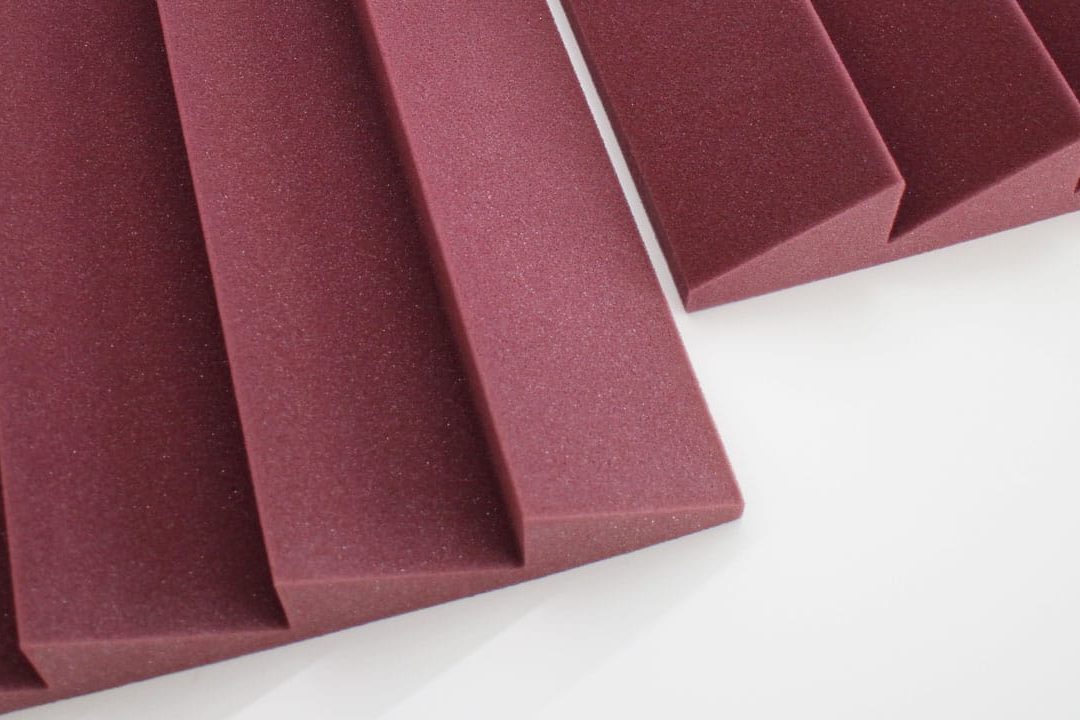

The louver shape has increased surface area for absorption of mid-high frequencies. The total thickness is 50mm respectively (inclusive of 10mm base). Available in 2 different profiles : Louver 50a and 50b

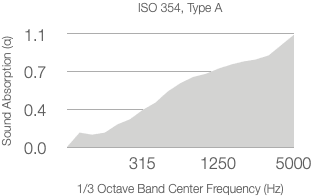

Louver 50a

Profile
Louver 50b

Material
Polyurethane Foam

Standard Height
600mm x 600mm, 1200mm x 1200mm

Standard Diameter
50mm

Wedge Profile
300mmW x 40mmH with 10mm Base

Density
25kg/m3

Finishing
Flocked or Unflocked

Fire-Rated Test
ASTM E84-12a: Class A

Acoustics Test
ASTM C423-09a : NRC = 0.65

Download Specification Sheet PDF

Cellyx™
Louver 50a

previous arrow
next arrow
previous arrownext arrow
Slider

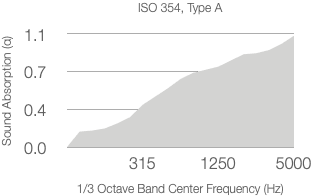

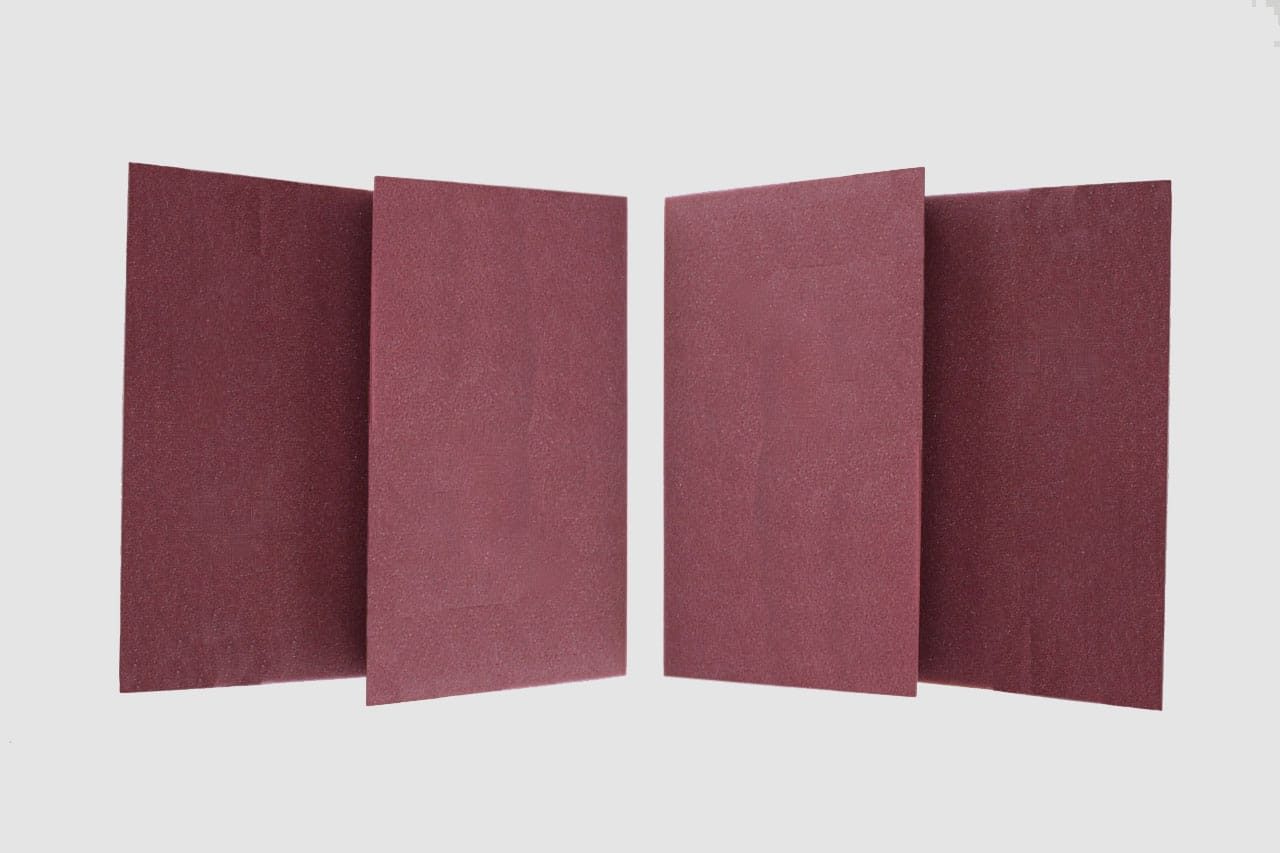

Louver 50b

Profile
Louver 50a

Material
Polyurethane Foam

Standard Height
600mm x 600mm, 1200mm x 1200mm

Standard Diameter
50mm

Wedge Profile
150mmW x 40mmH with 10mm Base

Density
25kg/m3

Finishing
Flocked or Unflocked

Fire-Rated Test
ASTM E84-12a: Class A

Acoustics Test
ASTM C423-09a : NRC = 0.65

Download Specification Sheet PDF

Cellyx™
Louver 50b
