Cellyx™

Cellyx™ is our range of polyurethane and melamine acoustic foam. The fire-rated foam density is engineered based on airflow resistivity data.

Specifications

  • Profile: Flat, Wedge, Pyramid
  • Material: Polyurethane Foam, Melamine Foam
  • Standard Dimension: 600mm x 600mm, 1200mm x 1200m
  • Standard Thickness: 25mm, 35mm, 50mm, 60mm, 100mm
  • Density: 25kg/m3
  • Eco-Friendly Test: Oeko-Tex® Standard 100
  • Fire-Rated Test: ASTM E84-12a : Class A
  • Acoustics Test: ASTM C423-90a : NRC = 0.5 – 1.0
Download Specification Sheets ZIP

Flat

Available in thickness of 25mm, 50mm and 100mm

Acoustic foam is one of the most common sound absorbers used in acoustical treatment to reduce echoes and reverberations. The flat shape of Cellyx™ Flat Acoustic Panel provides basic sound absorption for low-high frequencies.

Download Specification Sheet PDF

Cellyx™
Flat 50

previous arrow
next arrow
previous arrownext arrow
Slider

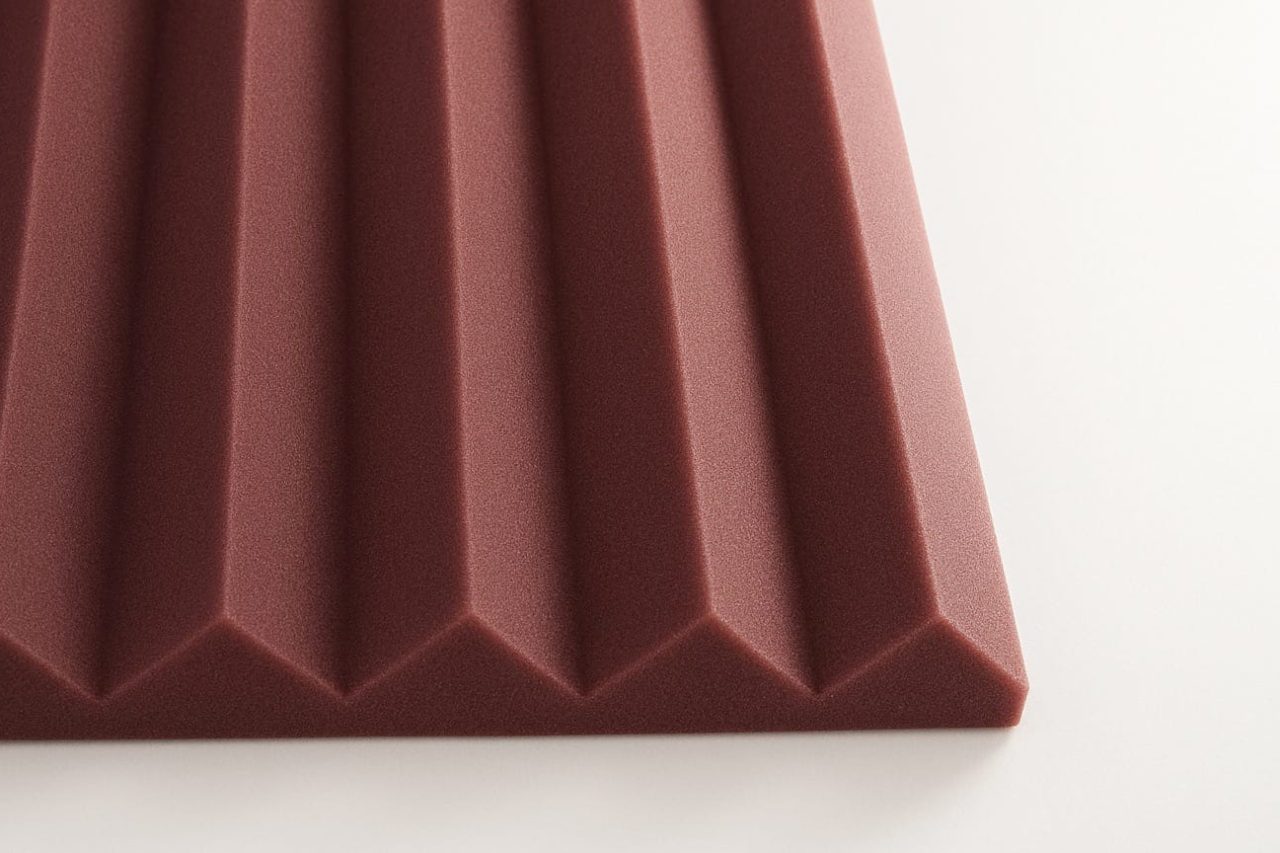

Wedge

Available in thickness of 50mm

Wedge shape has an increased surface area for absorption of mid-high frequencies. The wedge profile comes in 25mmL x 25mmH and 25mmL x 50mmH dimensions. The total thickness is 35mm and 60mm respectively (inclusive of 10mm base).

Download Specification Sheet PDF

Cellyx™
Louver 50a

previous arrow
next arrow
previous arrownext arrow
Slider

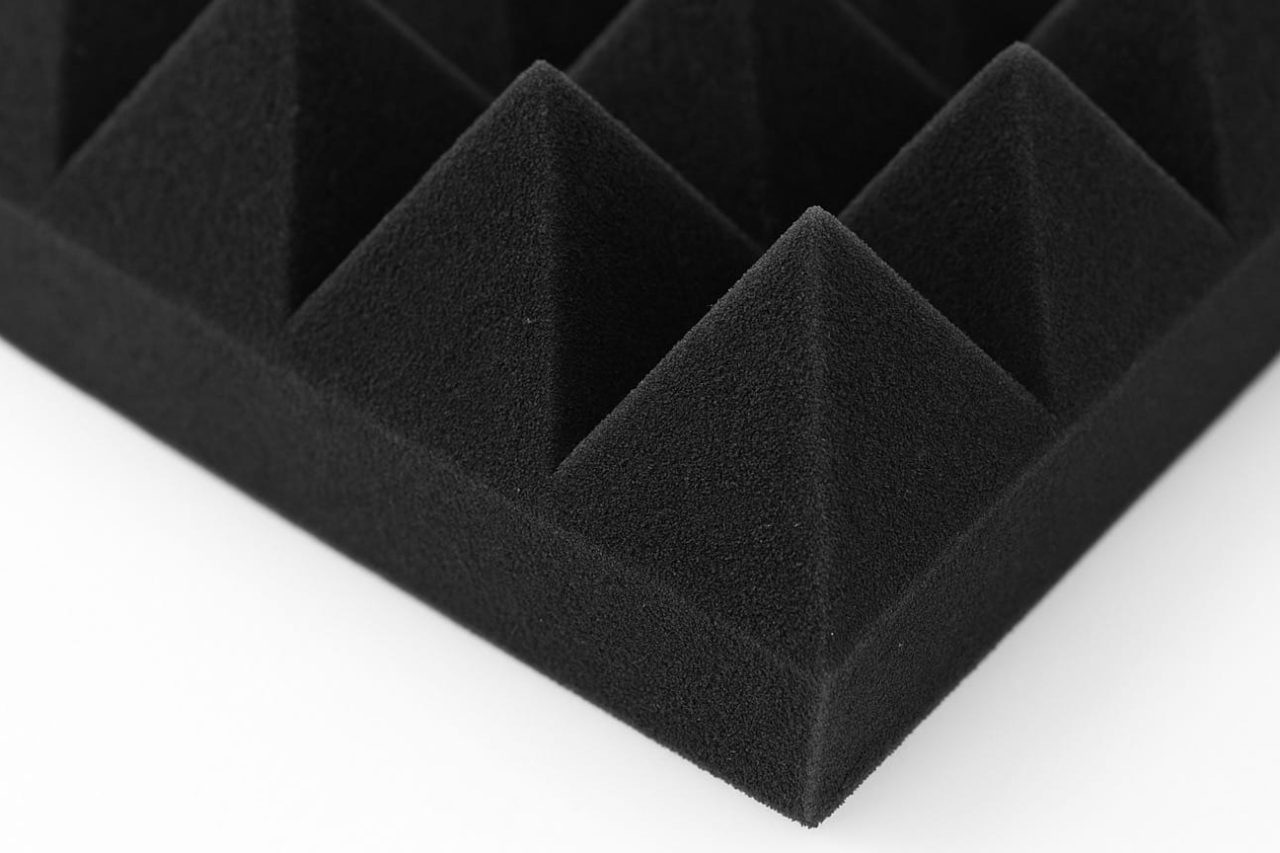

Pyramid

Available in 50mm thickness

Pyramid shape has the most surface area for absorption of mid-high frequencies. The pyramid profile comes in 25mmL x 25mmW x 25mmH and 50mmL x 50mmW x 50mmH dimensions. The total thickness is 35mm and 60mm respectively (inclusive of 10mm base).

Download Specification Sheet PDF

Cellyx™
Pyramid 50

previous arrow
next arrow
previous arrownext arrow
Slider

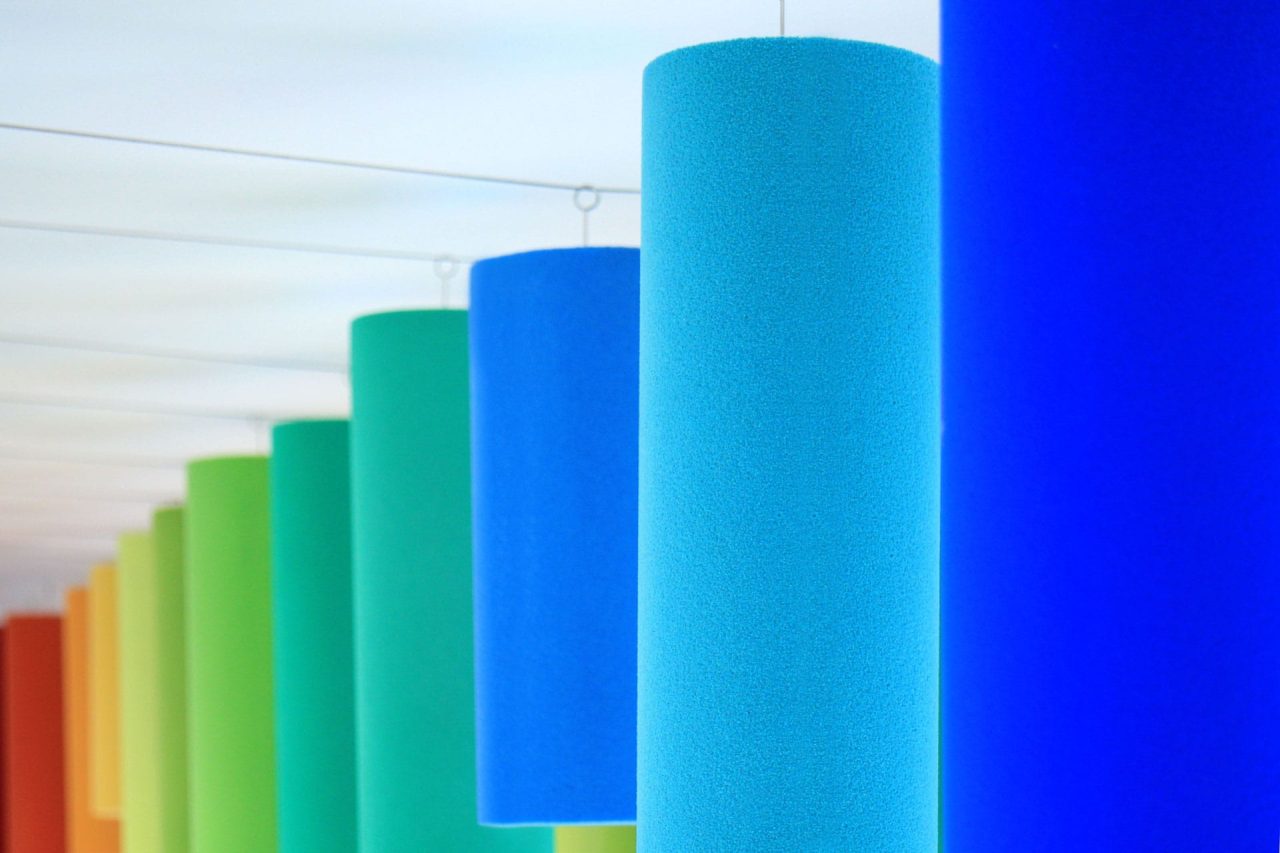

Cylinder Baffles

Available in diameters of 100mm and 150mm

Cellyx™ Cylinder baffles improve the quality of sound in large rooms. They can be mounted horizontally or vertically with corkscrew hangers. They are made from melamine foam and are Class 1 fire-rated according to ASTM E84 for flame spread and smoke density.

Download Specification Sheet

  1. Cylinder 100 PDF
  2. Cylinder 150 PDF

Cellyx™
Cylinder 100mm Baffles

previous arrow
next arrow
previous arrownext arrow
Slider

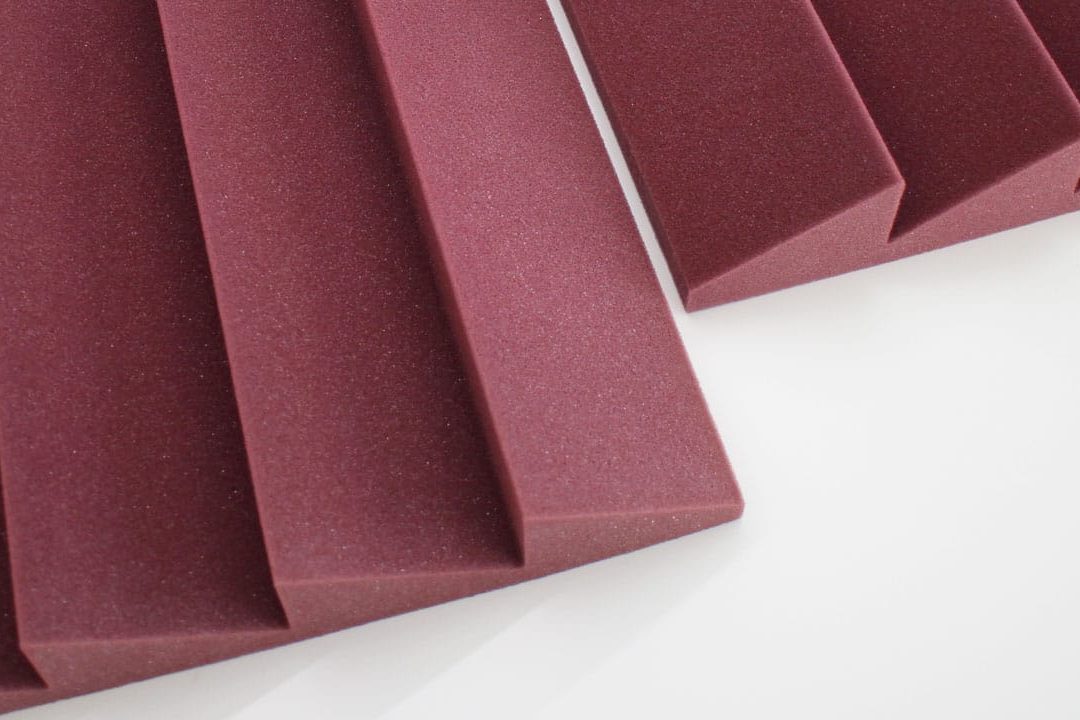

Louver

Available in two different profiles: Louver 50a and 50b

The louver shape has increased surface area for absorption of mid-high frequencies. The louver profile comes in 75mmL x 40mmH dimensions. The total thickness is 50mm respectively (inclusive of 10mm base).

Download Specification Sheet

  1. Louver 50a PDF
  2. Louver 50b PDF

Cellyx™
Louver 50b

previous arrow
next arrow
previous arrownext arrow
Slider
